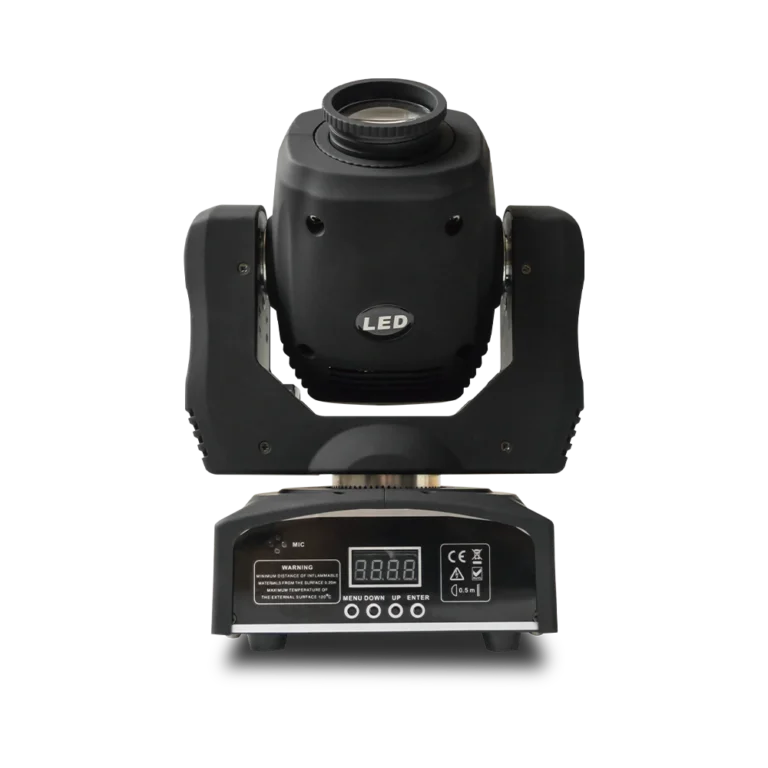

Product A

Electrical

• Power supply: Electronic auto-ranging
• Input voltage range: AC100-240V, 50/60Hz
• Power consumption: 230W max. @230V

Lamp

• Light source: 19 x 15Watt RGBW LED
• Color mixing: RGBW 4-in-1
• LED lifetime: 50,000 hours avg.
• *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Dynamic Effects

• Dimming: 0 – 100% continuous dimming
• Pan: 540°(8 bit/16 bit)
• Tilt: 270°(8 bit/16 bit)
• Zoom range: 8° – 50° motorized zoom
• Strobe: 20 times/sec, variable & random strobe

Control and Programming

• Control mode: DMX, Auto program, Master-slave, Sound activate
• DMX channels: 10/15/21/37
• Addressing and setting: Control panel with LCD display and control buttons

Connection

• Power connection: PowerCon in
• Signal connection: 3-pin XLR in & out

Construction

• Housing: Engineering grade plastic
• Colour: Black
• Environment: IP20

Thermal

• Cooling: Forced ventilation with fans
• Maximum ambient temperature: 40° C (104° F)
• Minimum ambient temperature: 5° C (41° F)

Physical

• Size: 300 x 200 x 380mm(11.8 x 7.9 x 14.9in)
• Package size: 550 x 390 x 490mm(21.6 x 15.4 x 19.3in)
• N.W.: 8.3kg(18.3lb)
• G.W.: 9.5kg(20.9lb)

Accessories

• Included: PowerCon cable, Omega bracket, Safety rope, Manual
• Optional: Clamp
